The On-Board Charger (OBC) is a power conversion device installed in electric vehicles (EVs) or plug-in hybrid electric vehicles (PHEVs). It converts external alternating current (AC) into the direct current (DC) required to charge the vehicle's battery. The OBC performs AC/DC conversion, voltage and current regulation, charge management, and provides protection mechanisms.

OBC

The On-Board Charger (OBC) is a power conversion device installed in electric vehicles (EVs) or plug-in hybrid electric vehicles (PHEVs). It converts external alternating current (AC) into the direct current (DC) required to charge the vehicle's battery. The OBC performs AC/DC conversion, voltage and current regulation, charge management, and provides protection mechanisms.

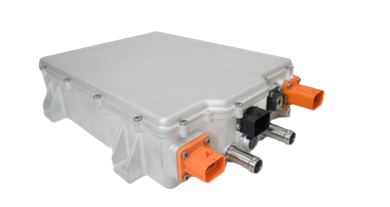

400V bi-directional OBC Combo

 ( 11kW OBC+3kW DCDC)

Facts & Benefits


Compact and lightweight design

V2L function supported

Compatible with 1 phase and 3 phase charging piles


Technical Information


Rated input power: 11kW(3P)

Rated output power : 9.9kW(3P), 6.6kW(1P)

OBC Max Output Current : 33A (3P)，22A (1P)

Output Voltage Range : DC 270V-488V

Max input current 3 phase: 16A 304~480 VAC 45-65Hz.

Max input current 1 phase: 32A 85~265 VAC

Dimension : 383.5mm(L)*294mm(W)*84.5mm(H)

Weight : < 11.5KG

Protection Level : IP67

EMC : CISPR 25 class 3.

Quiescent Current : ≤ 0.5mA

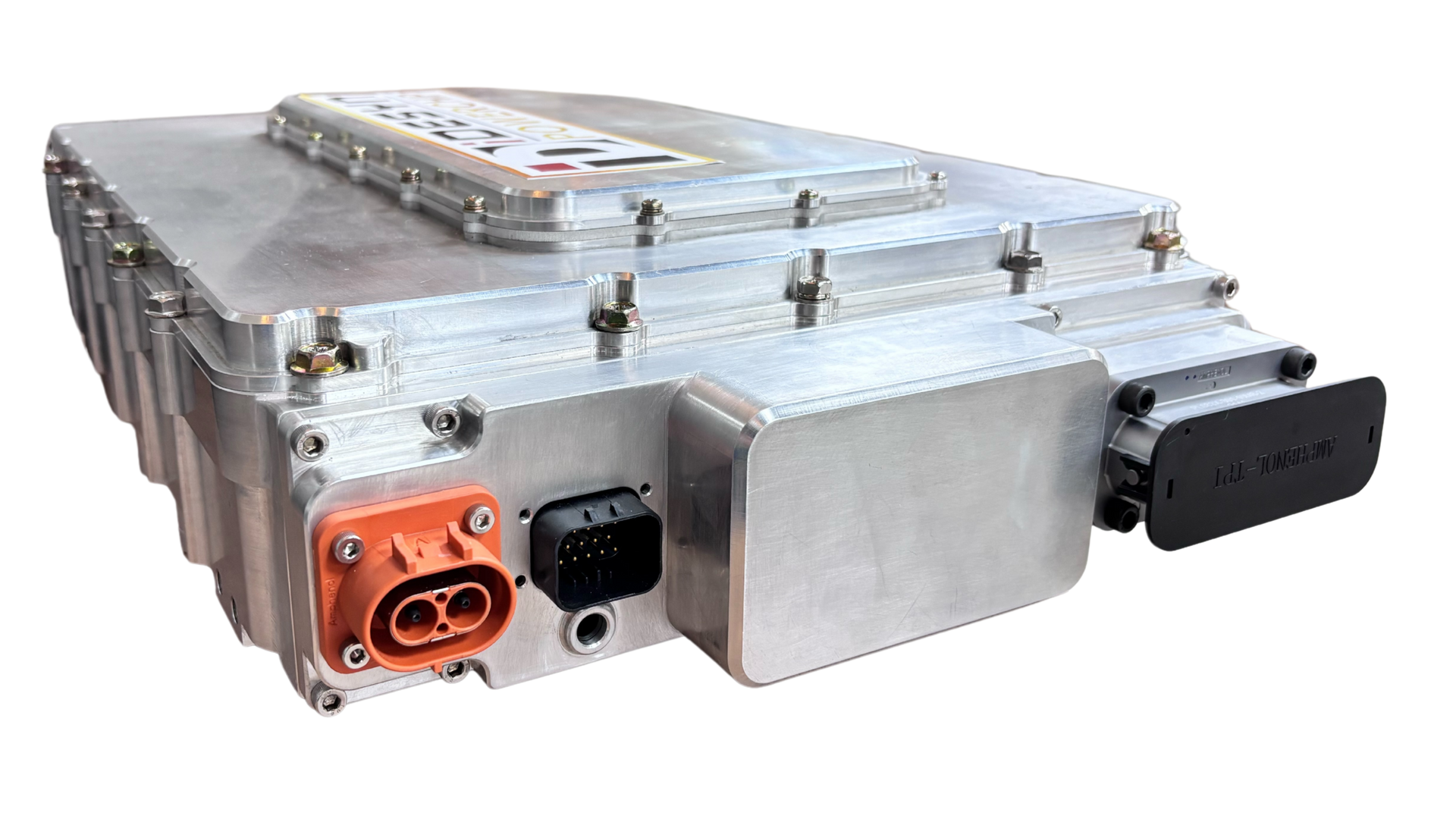

22kW/800V
 ( bi-directional OBC)

Facts & Benefits


Compact and lightweight design

V2L function supported

Compatible with 1 phase and 3 phase charging piles

Technical Information


Rated input power: 22kW(3P)

Rated output power : 22kW(3P), 6.6kW(1P)

OBC Max Output Current : 32A (3P)，22A (1P)

Output Voltage Range : DC 450V-900V

Max input current 3 phase: 36A 304~480 VAC 45-65Hz.

Max input current 1 phase: 32A 85~265 VAC

Dimension : 470mm(L)*350mm(W)*120mm(H)

Weight : < 22.5KG

Protection Level : IP67

EMC : CISPR 25 class 3.

Quiescent Current : ≤ 0.7mA
